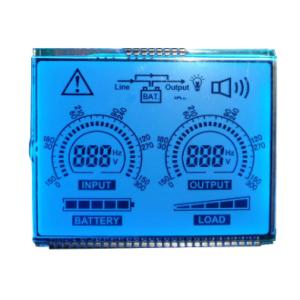

7 Segment LCD Display TN LCD Display Blue Backlight HT1621 COB Module
Detail Information
| LCD Type: | TN, Positive |
| Viewing Angle: | 12 O'clock |
| Operating Temperature: | 0~+50℃ |
| Voltage: | 3.3V |
| Backlight: | Blue |
| Connector: | PIN |
Detailed Parameters:
| Module Size | 66(W)* 56(H)* 10.2(T) mm | Display mode | TN, positive |
| LCD viewing area | 45(W)* 35(H) mm | Polarizer type | Transmissive |
| Driver IC | HT1621 | LED backlight | Blue, 3 pcs |
| Drive method | 1/4 Duty, 1/3 Bias | Working voltage | 3.3V |
| Viewing angle | 12 O'clock | Connection Way | PIN, 36 numbers |
| Operate temperature | 0℃~+50℃ | Storage temperature | -10~+60℃ |
Display Types:
Production Line:
☆ Clean Room class 10k@0.8um, Pressurec 0.8kgf
☆ Antistatic floor, resistance : 1x10 ohm to 1x10 ohm
☆ COG production lines: 4 .
☆ Backlight production lines: 2 .
☆ Existing machine capacity will be 1KK per month.
***In compliance with ISO9001 Quality Management
***One year's guarantee for unartificial damage
1: Small lcd display screen
2: Reasonable price
3: Large capacity
4: Certificate ISO; Rohs, REACH
5: Dimension as customer request
6: STN blue small lcd display screen
