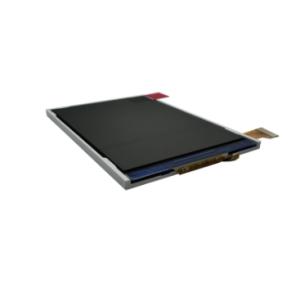

2.8 Inch TN TFT LCD Screen With SPI Interface 240x320 Resolution
Product Description
| Attribute | Value |
| Display Type | TFT (TN) |
| Display Size | 2.8 inch |
| Resolution | 240×320 QVGA |
| Interface | SPI |
| Driver IC | ST7789P3 |
| Viewing Angle | 6 O'clock |
| Backlight | 4-LED, 80mA |
| Active Area | 43.20×56.70mm |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
Module Dimensions
- Module Size: 50mm(W) × 66.4mm(H) × 2.7mm(T)
- Panel Active Area: 43.2mm(W) × 57.6mm(H)
Product Range
Custom Segment LCD Displays: TN, STN, HTN, FSTN, VA/BTN types available
Dot Matrix Graphic LCD Displays: From 96×16 to 320×240 resolutions
AMOLED Displays: 0.96" to 2.4" sizes available
TFT LCD Displays: 0.91" to 21.5" sizes with HD full color
